Waterproofing Bellville Homes Before Repainting

Waterproofing Before Painting in Bellville

Waterproofing and exterior painting should not be treated as two unrelated jobs.

Where rainwater enters through cracks, windowsills, parapets, failed seals, movement joints or exposed wall tops, applying another decorative topcoat without treating the vulnerable detail can allow the same failure to return.

Our Bellville exterior painting specifications therefore identify relevant water-entry risks during the preparation stage and include appropriate waterproofing, sealing or damp-related preparation where required.

For our wider local painting service and documented Bellville projects, visit Painters Bellville.

Why Horizontal Surfaces Need Special Attention

Rain behaves differently on horizontal masonry than on a vertical wall.

A vertical façade sheds much of the rainfall down the surface. A parapet top, windowsill or boundary-wall coping receives rain directly and may hold water for longer.

Small cracks or deteriorated waterproofing on these upward-facing surfaces can therefore become important routes for moisture ingress.

The visible paint failure may eventually appear below the actual point where the water entered.

Dulux Rainshield on Parapets, Windowsills and Boundary-Wall Tops

Our written exterior specifications identify suitable horizontal masonry such as:

• parapet wall tops;
• exterior windowsills;
• horizontal toppings of garden walls; and
• horizontal tops of boundary walls.

Once cracks and defects within the scope have been properly prepared, these surfaces can receive the specified waterproof coating system.

Where Dulux Rainshield is specified, we apply two coats.

The second coat is applied perpendicular to the first so that the coating is worked across the surface in the opposite direction and consistent coverage is achieved.

This waterproofing preparation is completed before the surrounding decorative exterior coating system is finished.

Waterproofing Does Not Mean Painting Over Cracks

A waterproof coating cannot compensate for inappropriate crack preparation.

The repair method depends on the size and behaviour of the defect.

Our written specifications distinguish between hairline cracks, wider plaster cracks, map cracking and movement joints rather than treating them all in the same way.

Hairline Cracks Up to Approximately 1 mm

Hairline cracks require a different preparation method from wider plaster failures.

Our documented specification includes applying an alkali-resistant sealer into the crack before working Dulux Rainshield into the hairline crack with a stiff brush to help fill and bridge the defect.

Where a wall contains multiple spiderweb or map-type cracks, the affected surface can require a broader flexible waterproof coating treatment rather than treating only one isolated line.

Plaster Cracks of Approximately 1-5 mm

Suitable wider plaster cracks require more substantial preparation.

The specified process includes:

• opening the crack into a suitable V-shaped joint;
• brushing and cleaning the opened crack;
• repairing suitable shallow defects with compatible masonry patching material;
• sanding the repair smooth once ready;
• removing preparation dust; and
• applying the specified flexible Rainshield waterproofing treatment over the repaired zone.

Two Rainshield coats are applied over the repaired area where specified, with the second coat crossing the direction of the first.

This prevents a 3 mm or 4 mm plaster defect from being treated as though it were merely a fine surface hairline.

Map and Spiderweb Cracking

Map cracking creates a network of many fine cracks across the surface.

Even though each individual line may appear small, the combined cracked area can provide multiple paths for rainwater and moisture.

Where specified, affected areas receive suitable priming followed by the flexible Rainshield preparation system before decorative topcoating.

Expansion Joints Are Not Ordinary Plaster Cracks

Expansion and movement joints are intended to accommodate movement.

They should therefore not simply be packed with rigid plaster filler and painted over.

Our Bellville exterior specifications include inspection of existing expansion joints and removal of deteriorated sealant where required.

The relevant joints can then be resealed with a single-pack flexible polyurethane sealant before the surrounding coating system is completed.

The same principle applies wherever the building detail is expected to continue moving.

Window and Door Perimeter Sealing

Failed seals around windows and doors are common routes for rainwater entry.

The paint failure may appear some distance below the failed seal because water can migrate through or behind the surrounding masonry before becoming visible.

Where included in the project scope, deteriorated perimeter sealant is removed or prepared and the affected junction is resealed with suitable flexible polyurethane.

Exterior penetrations such as selected wall fittings can also require sealing where gaps may allow moisture into the wall.

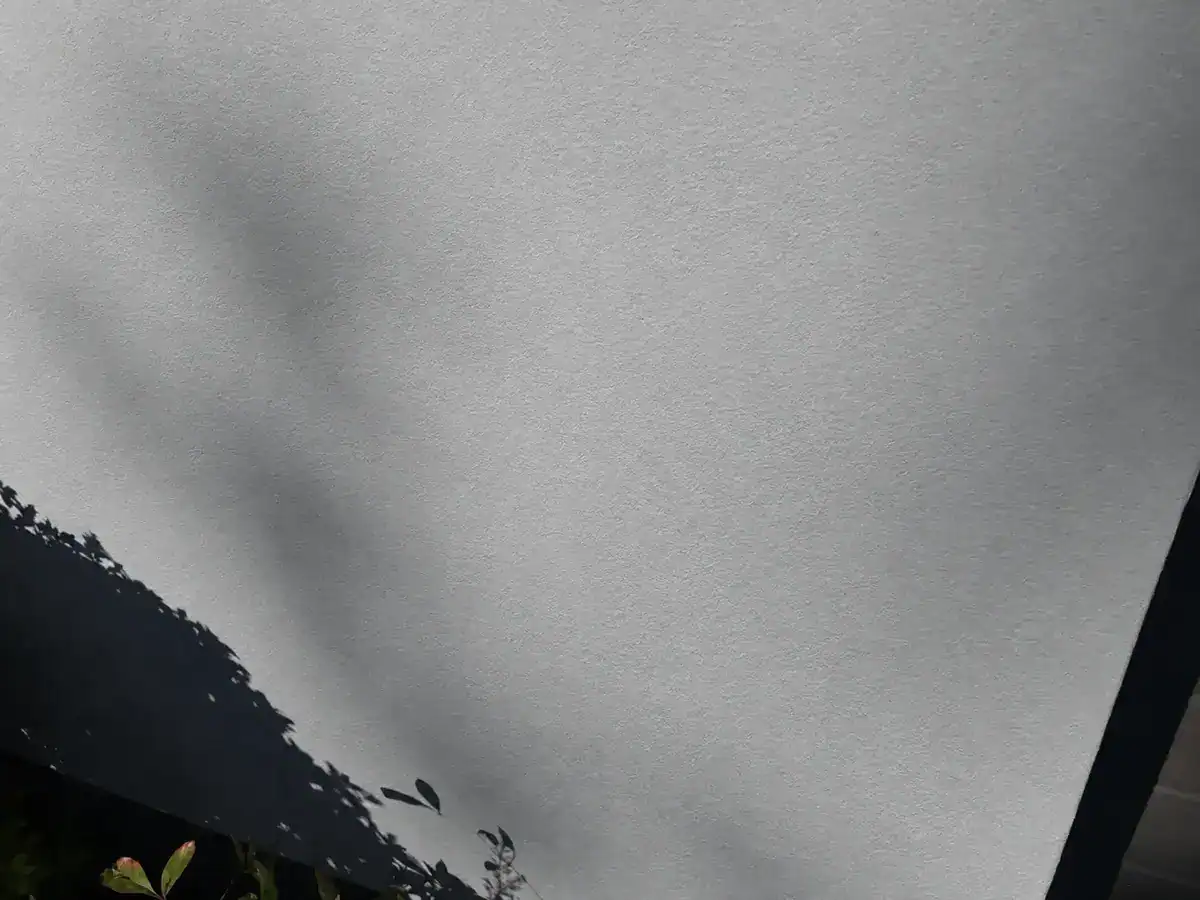

Kanonberg Lifestyle Estate – A Real Bellville Waterproofing Example

Our documented March 2026 Kanonberg Lifestyle Estate project is particularly relevant to waterproofing in Bellville.

The inspection recorded relative masonry moisture readings between 17% and 20% on selected areas.

More importantly, the physical inspection identified several possible routes for water entry:

• map and spiderweb cracking;
• larger plaster cracks;
• failed window and door sealants;
• unsealed expansion joints;
• vulnerable windowsills;
• parapets and other horizontal surfaces;
• powdery exterior surfaces; and
• moisture-related discolouration and coating deterioration.

The resulting preparation scope therefore combined crack repairs, flexible sealing, horizontal-surface waterproofing, damp-related preparation and exterior repainting rather than relying on one product to solve every symptom.

View the complete Kanonberg Lifestyle Estate project

Alkali Attack and Moisture Below Horizontal Surfaces

Moisture moving through cementitious masonry can carry alkaline salts and contribute to discolouration and deterioration of the paint film.

This can become particularly visible beneath windowsills, parapets and other horizontal masonry where rainwater has been allowed to enter through small cracks or unprotected surfaces.

The correct remedial approach may therefore involve several stages:

• identify and repair the crack or water-entry point;
• waterproof the relevant exposed surface;
• prepare moisture-affected wall areas;
• prime where required; and
• apply the specified exterior coating system.

Dulux Dampshield and Moisture-Affected Masonry

Dulux Dampshield can form part of the preparation system on suitable moisture-affected masonry where specified.

It is not used as a substitute for repairing cracks, failed sealants, defective waterproofing or other active routes of water entry.

Where the written specification requires it, prepared damp-affected areas receive the appropriate Dampshield treatment before compatible finishing coatings are applied.

A moisture reading is only one part of that decision. The building detail and possible water source must also be considered.

Welgemoed – Why Internal Water Symptoms Still Need Source Identification

Our documented Welgemoed interior project provides another useful example.

Protimeter readings ranged from 8.2% to 16.7%. The inspection also identified peeling and discoloured wall paint, failing bathroom sealant and a brown water stain on a bathroom ceiling.

Those symptoms did not automatically prove one single moisture source.

A bathroom perimeter seal, historic roof or plumbing leak, wall defect and other building conditions require different repairs.

This is why internal damp-related paint failure should not automatically result in a waterproof coating being applied without first considering where the moisture originated.

View the Welgemoed interior project

Boundary Walls – Waterproof the Top, But Understand the Limitation

Boundary and garden walls deserve particular attention because they are frequently exposed to moisture from more than one direction.

The horizontal top of a boundary or garden wall can be waterproofed where appropriate. After suitable crack preparation, two coats of Dulux Rainshield can be applied to the exposed top where included in the specification.

However, waterproofing the top does not necessarily solve moisture entering the wall from:

• soil;
• irrigation;
• raised flower beds;
• backfilled ground;
• poor drainage;
• the reverse side of the wall; or
• below the wall where no effective damp-proof barrier exists.

This distinction is extremely important.

A coating can protect the surface to which it is applied, but it cannot permanently stop moisture that continues entering the masonry from behind or below.

Why Boundary-Wall Warranties Can Be Limited

Main-building walls and boundary walls do not always have the same moisture protection.

Where continuing ground or reverse-side moisture is present, discolouration, bubbling or peeling can recur even when the visible face has been professionally prepared and coated.

For this reason, supplier and contractor warranty conditions can exclude moisture-related failure on boundary walls where the source of moisture cannot be stopped by the coating system.

This is an honest technical limitation rather than an indication that preparation should be omitted.

Foundation Walls and Backfilled Areas

Foundation-level walls below expansion joints or weep-hole levels can also be affected by continuing moisture from the backfilled side of the structure.

Dampshield and suitable coating preparation may improve the treated surface, but they cannot create a missing damp-proof barrier behind the wall.

Where continuing moisture migration is expected, this limitation should be recorded clearly in the quotation before work starts.

Waterproofing Around Roofs

Roof painting and roof waterproofing are related but not identical.

Our Bellville roof evidence includes a cement-tile roof in Protea Valley and an IBR metal roof in Welgedacht.

Depending on the roof type, preparation can include:

• replacement of damaged tiles;
• inspection of roof screws and fasteners;
• local waterproofing repairs;
• corrosion treatment;
• cleaning and fungal treatment;
• appropriate primers; and
• protective roof coatings.

But roof paint does not repair an active roof leak.

Defective flashings, broken components, failed membranes and other active water-entry defects must be repaired separately.

See our Roof Painting Bellville page for both documented Bellville roof systems.

Why the Water Entry Point May Be Above the Paint Failure

Water can enter through an exposed sill, parapet, crack or failed joint and migrate through masonry before becoming visible.

That means the bubbling or discolouration seen lower down on a wall may not be located directly over the original defect.

This is one reason successful waterproofing starts with inspection of the surrounding building envelope rather than only repairing the damaged paint film.

Our Bellville Waterproofing Preparation Process

1. Inspect the Moisture Symptoms

We record where paint is peeling, bubbling, stained, powdery or otherwise deteriorating.

2. Look for Water-Entry Routes

Cracks, parapets, windowsills, joints, seals, rooflines, wall tops and other building details are considered.

3. Repair Cracks According to Their Type

Hairline cracks, wider plaster cracks, map cracking and movement joints receive different treatment.

4. Reseal Flexible Junctions

Failed window, door and movement-joint sealants are renewed where required using the specified flexible sealing system.

5. Waterproof Suitable Horizontal Surfaces

Where specified, parapets, windowsills and tops of boundary or garden walls receive two coats of Dulux Rainshield, with the second coat applied perpendicular to the first.

6. Treat Moisture-Affected Wall Areas

Dampshield or other appropriate preparation can be included where the substrate condition and written specification require it.

7. Apply the Decorative Exterior Coating System

Once the underlying preparation is complete and suitable for coating, the specified primer and exterior finishing system is applied.

Waterproofing vs Damp Proofing

The two terms are often used interchangeably, but they can refer to different parts of the preparation problem.

Waterproofing generally deals with preventing liquid water entering through exposed building details such as horizontal surfaces, cracks and joints.

Damp-related preparation deals with masonry already showing elevated moisture or coating deterioration associated with moisture.

A successful remedial project may require both.

Waterproofing vs Painting

Decorative paint provides weather protection, colour and a finished appearance, but it should not be expected to replace dedicated waterproofing preparation.

Where vulnerable horizontal surfaces or cracks are present, the underlying detail should first receive the appropriate remedial treatment before the decorative exterior paint is relied upon.

How Much Does Waterproofing in Bellville Cost?

There is no honest universal price because the scope depends on what is actually failing.

Cost can be affected by:

• number and size of cracks;
• extent of horizontal waterproofing;
• parapet length;
• number of windowsills;
• boundary-wall length;
• sealant replacement;
• access and height;
• damaged plaster;
• damp-related preparation;
• roof defects; and
• the coating specification required after waterproofing.

For real Bellville painting quotation examples, see our House Painting Cost Bellville guide.

Peeling or Bubbling Paint After Water Entry?

Our dedicated Why Paint Peels, Bubbles or Fails in Bellville guide explains how waterproofing defects, moisture, weak coatings, corrosion, chalking and sealing failures can lead to visible coating breakdown.

Waterproofing Premium Bellville Homes

Large homes in Welgemoed, Kanonberg, Welgedacht and Protea Valley may contain extensive parapets, substantial rooflines, balconies, windowsills, landscaped boundary walls and multiple building junctions.

Our Premium Home & Estate Painting Bellville page explains how those details influence the wider repainting project.

Request a Bellville Waterproofing and Painting Inspection

If exterior paint is peeling below windowsills, parapets, boundary-wall tops or other exposed masonry, simply repainting the visible damage may not solve the underlying problem.

We can inspect the relevant surfaces, identify visible defects, define the preparation required and provide a written quotation for the waterproofing and painting work within our scope.

Call 082 374 6862 or visit our contact page to arrange an inspection.
